International Journal of Pharmaceutical InvestigationNOW IN
Review

Toward Application of Microsponges for Topical Drug Delivery: A Review

Rajashree Shashidhar Masareddy1, Archana Sidagouda Patil1★, Ankita Kashinath Patil1, Ravikiran Ramachandra Kanabargi1, Pooja Prakash Rayanade1★ Corresponding author

  1. 1Department of Pharmaceutics, KLE College of Pharmacy, Belagavi, KLE Academy of Higher Education and Research, Belagavi, Karnataka, INDIA.

CORRESPONDENCE

Archana Sidagouda Patil

Department of Pharmaceutics, KLE College of Pharmacy, Airport Road, Basavan Kudachi-591124, KLE Academy of Higher Education and Research, Belagavi, Karnataka, INDIA.

archanapatil@klepharm.edu

Received: 21-04-2026; Revised: 07-05-2026; Accepted: 17-06-2026.

Volume 16, Issue 4 · pp. 1231–1243 · PUBLISHED Oct-Dec 2026 · DOI: 10.5530/ijpi.20260179

View on IJPI original site ↗

ABSTRACT

The sunscreen industry is a growing industry because of the increasing need for skin protection and increased awareness of the harmful effects of sunlight by the consumer. Day by day more effective sunscreen actives, novel cosmetics are added to the formulator’s repertoire. Microsponges hold a bright future due to their wide pharmaceutical application and unique property like high loading efficiency, small size, better target delivery and controlled release. Sunscreen should be long-lasting to reduce frequency of application and also should have less side effects; microsponges drug delivery helps reach reaching the goal of controlled and site-specific drug delivery. Microsponges enhance the safety and efficacy of Active Pharmaceutical Ingredients (APIs) in sunscreens, cosmetics, and various over-the-counter skin preparations by minimizing side effects. This article includes the methods, evaluation, application, advantages, limitations and recent advancements in microsponges with respect to sunscreens. This study conducted a comprehensive review of all available information on Microsponges; it presents promising new therapeutic drug delivery with respect to sunscreens. Sunscreen agents are mostly unstable, hence microsponges help to extend product stability. According to review, patent activity signifies continued interest, suggesting significant potential for enhancing patient care.

KEYWORDS

0% READ

FULL TEXT

INTRODUCTION

To protect from harmful effects of sunlight, one should avoid overexposure to sunlight, one should use sunscreens frequently and wear protective clothes (Ma and Yoo, 2021). UV radiation from the sunlight (UVA and UVB) has a huge influence on the skin, causing photo aging, sunburns, cancerous lesions and immunosuppression (D’Orazio et al., 2013). The incidence of non-melanoma skin cancer is increasing worldwide, despite increasing use of sunscreens (Stoddard et al., 2018). Hence, there is need for advances in the sunscreen formulation, there is a need to formulate the sunscreen more photo stable and long-lasting. Sunscreens contain active agents, commonly referred to as filters. These filters can be inorganic, such as Titanium Dioxide and Zinc Oxide, or organic, such as Oxybenzone, Avobenzone, Octinoxate, and Octisalate (Schneider and Lim, 2019; Smijs and Pavel, 2011).

Organic filters generally demonstrate higher efficacy in sun protection, inorganic filters are typically considered less toxic and have a lower incidence of side effects compared to their organic counterparts (Serpone et al., 2007). Topical delivery of drugs shows many problems like unpleasant odor, uncontrolled release of the API, the use of vehicles that makes the formulation sticky, greasy causing lack of consumer compliance (Adepu and Ramakrishna, 2021). To overcome the above problem, new carrier technology is commonly used nowadays. Microparticles and nanoparticles show sustained and controlled release. These include Microspheres, liposomes, microsponges, nanoparticles (Lengyel et al., 2019). Microspheres do not show controlled release because once the outer layer is ruptured the drug inside is released out (Kircik, 2011). Liposomes show some demerits like low drug entrapment, less chemical stability, less microbial stability (Liu et al., 2022). The microsponges-based polymeric microspheres overcome the above limitations. Microsponge share a Novel drug delivery system which are porous microspheres, capable of entrapping a variety of actives such as anti-inflammatory agents, anti-acne agents, cosmetics etc. Size of microsponges varies from 5 to 300 μm with the pore volume up to 1 mL/g (Latha et al., 2013). They reduce toxicity of sunscreen agent and improve efficacy along with prolonged action (Kumari et al., 2016). Microsponge matrix consists of a myriad of interconnecting nanopores having a large internal surface area in a non-collapsible structure (Mahant et al., 2020). Microsponges entrap the actives inside and they do not penetrate the skin initially, hence shows reduced toxicity (Arya and Pathak, 2014). Microsponges act as reservoirs, enabling the controlled and sustained release of the encapsulated active ingredient, allowing for gradual permeation through the skin or mucous membranes (Schaefer et al., 1994). Microsponges, spherical particles composed of clusters of smaller spheres, are widely used in cosmetic skin preparations due to their unique structure. This structure allows them to absorb and hold a significant amount of material, up to four or five times their weight in skin secretions (Embil and Nacht, 1996). Microsponges, being porous in nature, can absorb skin secretions such as oil and sweat. This property helps reduce the oiliness and greasy feel of the skin, making them particularly beneficial in sunscreens and other skin care preparations (Tiwari et al., 2022). Microsponges are typically incorporated into cream, gel, or lotion formulations. Recent studies are going on to study the oral drug delivery of microsponges (Khule et al., 2019). This article provides information regarding the structure, application, methods, characterization and future of microsponges in cosmetics (Figure 1).

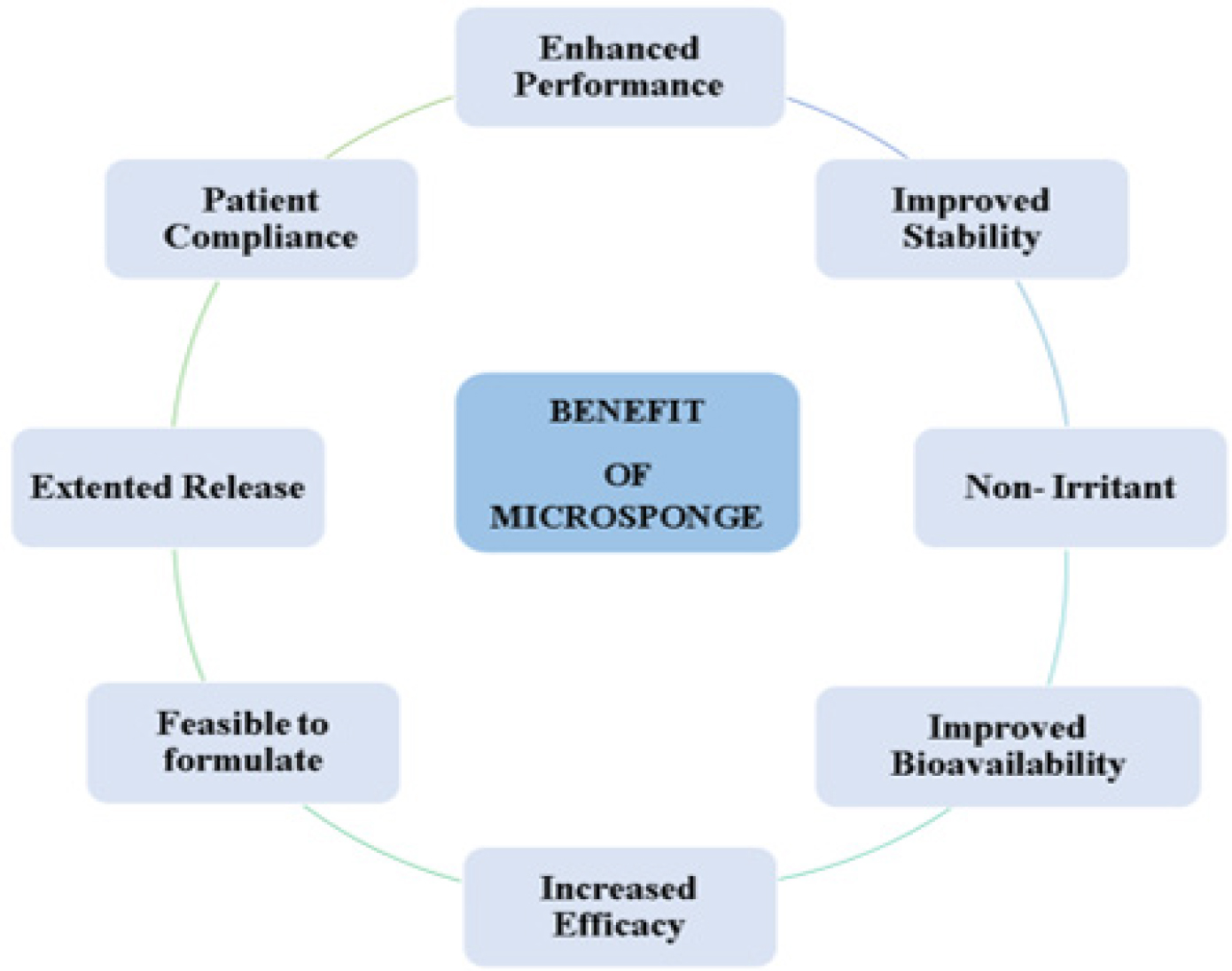

Figure 1: Benefit of Microsponge Delivery System.

Advantages of Microsponge

  • Demonstrates patient adherence.
  • Convert liquids into powders to advance material handling.
  • This will improve treatment efficiency and bioavailability.
  • Makes the product more elegant.
  • Because bacteria are too big to fit into the microsponge, shelf-life and item soundness may be postponed without the need for additives.
  • Enhanced product aesthetics.
  • Advanced oil control as it can absorb oil up to 6 times its weight without drying.
  • Improves efficacy in treatment.
  • Fluids can be converted into free streaming powder, which provides benefits for fabric care.
  • Because of the increased tolerance and decreased pain, consumer acceptance is high.
  • Prevent the active substance from building up in the dermis and epidermis.
  • Microsponge conveyance frameworks are non-allergic and non-toxic, and their definition is straightforward.
  • Give a larger dose of the medication and engage in continuous activity for up to 12 hr (Aloorkar et al., 2012; Mahant et al., 2020; Gidde et al., 2021; Kaur et al., 2024; Murkute et al., 2023; Jadhav et al., 2013).

Limitations

The medication techniques generally use organic solvents as porogens.

  • An environmental hazard.
  • Highly combustible.
  • Posing a safety hazard.

In some cases, the traces of residual monomers have been observed, which may be poisonous and dangerous to health.

Characteristics of microsponges

Microsponges when applied on skin, it releases the API onto the surface of the skin. The release can be enhanced by rubbing or temperature or pH change of the skin (Borawake et al., 2021; Nidhi et al., 2021; Bhatia and Saini, 2018).

  • Microsponges show compatibility with most of the ingredients and solvents.
  • Shows stability between pH range 1 to 11 and temperature upto 130oC.
  • Microsponge have high Entrapment Efficacy upto 50 to 60%.
  • They show free flowing property.

Since microsponges are too large in size they do not get absorbed into the skin. This can be used for API which should act on the skin surface. Hence the API will not get absorbed into the skin and there will be no toxicity, hence shows increased safety.

Microsponge preparation can be cost-effective, particularly for mass-market cosmetic applications where the cost of raw materials is a significant factor. Microsponges can be used for extended release formulations for having the action up to 12 hr. Hence it can be useful in sunscreen preparations to reduce frequency of application.

Microsponge pore size is about 0.25 μm, which cannot be penetrated by bacteria, and hence the microsponge acts as self-sterilizing formulations.

Characteristics of the active candidates

  • Actives should be solid or liquid.
  • It should be stable in contact with polymerization catalysts.
  • Should be fully miscible in monomers or miscibility can be achieved by adding a co-solvent.
  • It should be sparingly soluble or insoluble in water.
  • The active ingredients must be chemically stable in the presence of the monomers and should not significantly affect the viscosity of the final formulation.
  • It should retain the spherical structure of the microsponges.

The actives commonly incorporated in microsponges are Diclofenac Sodium, Paracetamol, Fluconazole, Benzoyl Peroxide, Hydroxyzine HCl, Mupirocin, Ketoprofen, Mefenamic acid, Dicyclomine, Ibuprofen, these are all anti-inflammatory, anti-acne, anti-spasmodic, anti-fungal, NSAID agents. Polymers commonly used in the preparation of microsponges are Eudragit RS 100, Eudragit S 100, Ethyl Cellulose, PHEMA and Polystyrene (Srivastava and Pathak, 2012).

METHODOLOGY

Methods of preparation of microsponges

The two most common methods used for preparation of microsponges are:

  • Free radical suspension polymerization.
  • Quasi-emulsion solvent diffusion.

Recently few new techniques have been developed for preparation of microsponges, which have different characterization parameters than the above two methods (Chadawar and Shaji, 2007). Among the two common methods, Free Radical Polymerization method is complex due to various limitations like irradiation, high temperature, the catalysis to activate the monomer in indispensable reaction condition and poor reproducibility. Whereas the Quasi-emulsion solvent diffusion method is easy to be performed in laboratory as well as in factory (Deasy, 1984).

Free radical suspension polymerization (Bottom-up approach)

Microsponges are prepared in a liquid-liquid emulsion system. Where polymerization process takes place in two phases. First is the ‘monomer’ or dispersed phase’ and second is the immiscible liquid phase ‘polymerization medium’ which when mixed gives polymerization reaction. A monomer diluent or 'porogen,' miscible with the monomer but immiscible with the polymerization medium, can be added to the reaction. This results in the formation of polymeric beads with an open, porous structure resembling sponges, hence the name 'microsponges. Initially suspension is obtained with droplets of desired size than polymerization reaction takes place by activating the monomer by catalysis or elevated temperature resulting in a series of polymer ladder overlapping to form a solid microsphere. Further with the progress of polymerization process they occurs formation of a spherical structure with thousands of microspheres entrapped into it, forming a interconnecting reservoir in which the porogen is entrapped. After completion of polymerization the solid particles are separated by filtration or centrifugation followed by washing and recovery of microsponges. For preparation of microsponges the requirements are monomers like styrene, PHEMA, toluene as porogen and cross-linking agent like Divinyl benzene Figure 2.

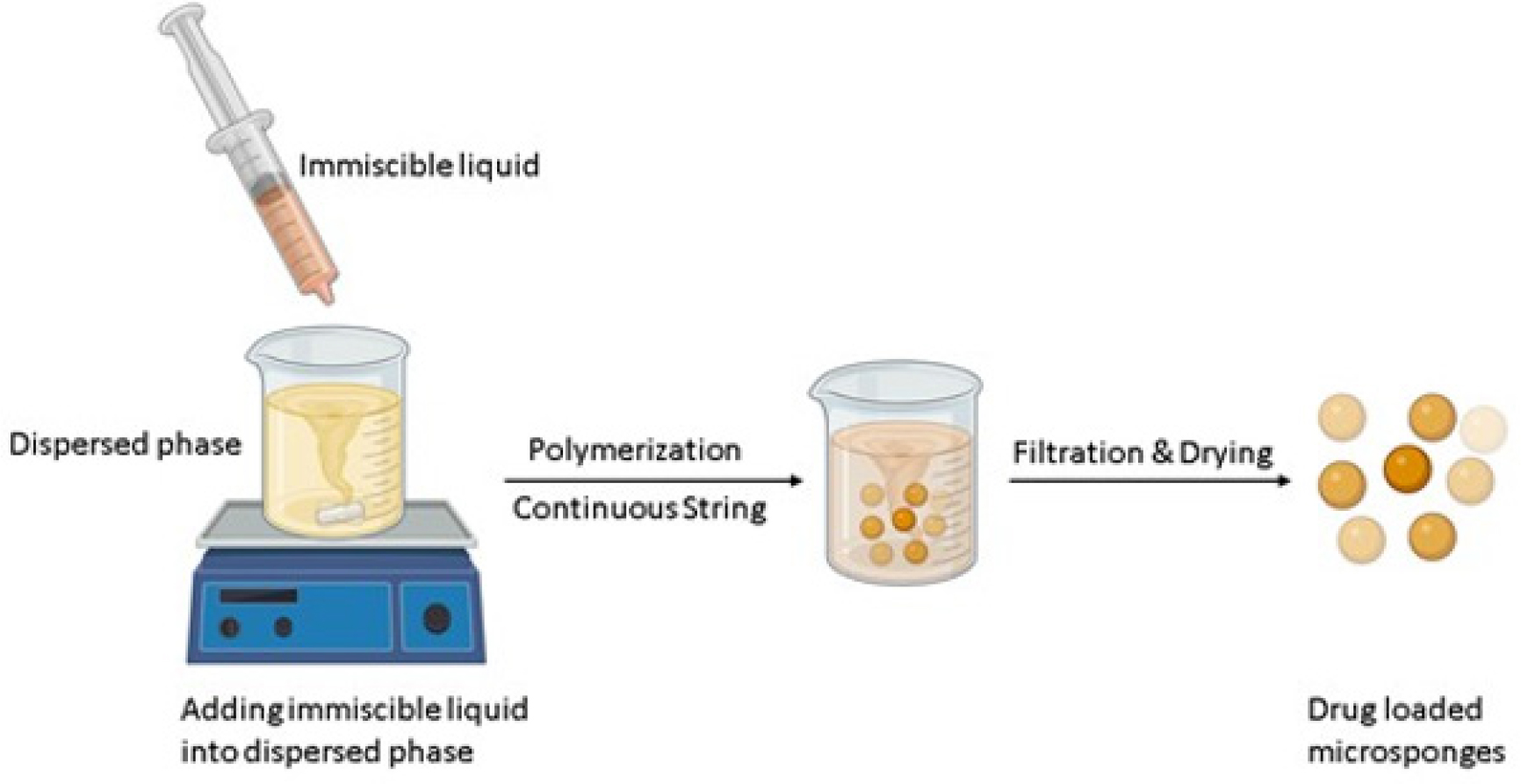

Figure 2: Free radical suspension polymerization.

Quasi-emulsion solvent diffusion method (Top Down approach)

This method involves two phases. The first phase is the internal phase containing the drug-polymer solution made in a volatile solvent like dichloromethane, ethanol or acetone. The second phase is the external phase containing aqueous Polyvinyl Alcohol (PVA) solution. The internal phase containing drug and polymer solution is added to the external phase in slow rate with continuous continuation and vigorous stirring. A plasticizer like Triethylcitrate (TEC) is added to increase plasticity to the particles. The solution is stirred for 1 to 2 hr which leads to formation of discrete emulsion globules called quasi-emulsion globules. Once the globules are formed, the solvent is extracted, resulting in the formation of insoluble, rigid microspheres. These microspheres, known as microsponges, are then collected through filtration. The microsponges were subsequently dried in a hot air oven. Microsponge formation occurs through a process of solvent diffusion. Fine droplets of a polymeric solution containing the drug solidify in the aqueous phase as the organic solvent diffuses out and water diffuses into the droplets. This leads to a decrease in the solubility of both the drug and the polymer, resulting in their co-precipitation, continued diffusion of the organic phase further solidifies the droplet, resulting in the formation of matrix-type porous microsponges (Figure 3) (Kawashima et al., 1992; Çomoğlu et al., 2003; Jyothi et al., 2019).

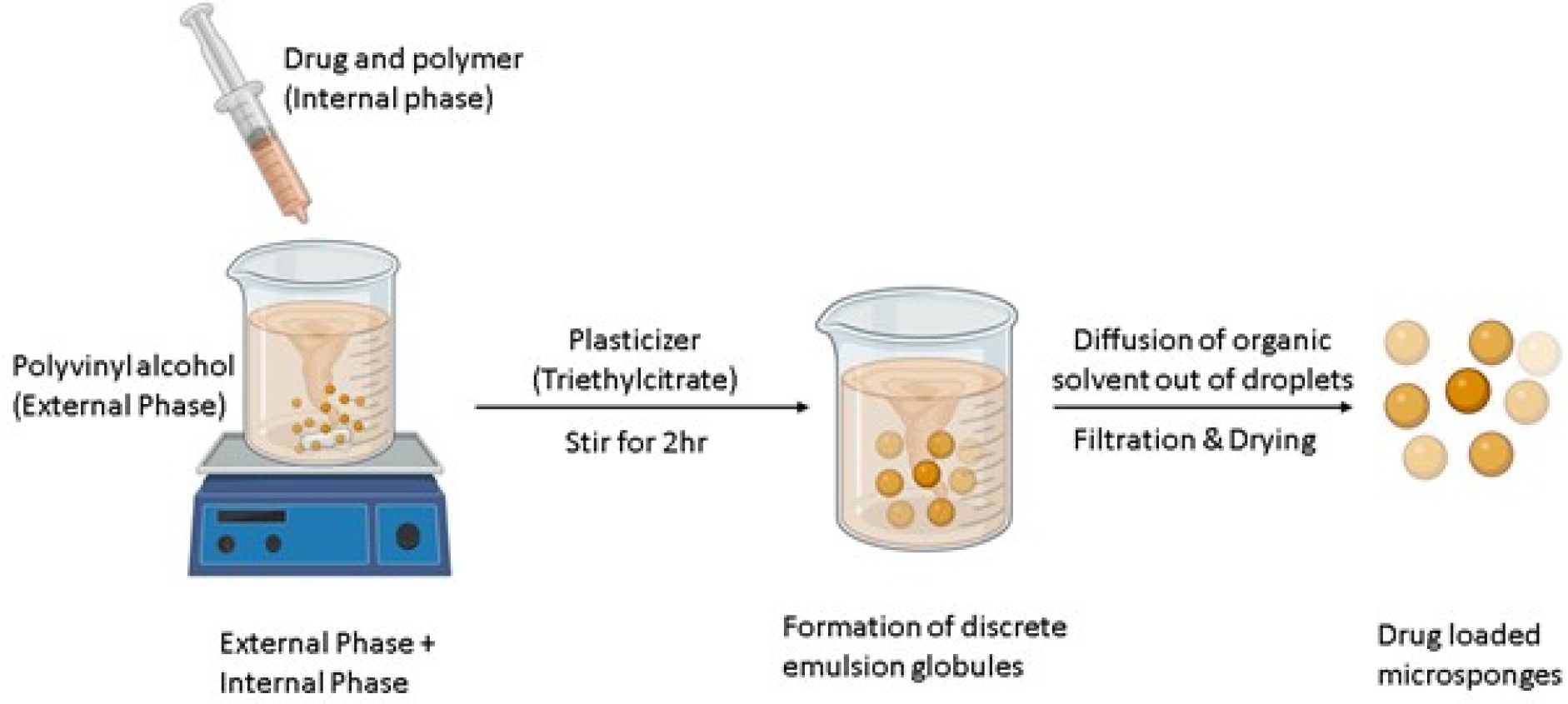

Figure 3: Quasi-emulsion solvent diffusion method.

Advanced techniques for microsponge synthesis

The drug entrapment method involves loading of the drug after the formation microsponges. First empty microsponges are formed than roller milled for 1 hr with ethanol solution of drug. The mixture was then placed in an oven at 65ºC for 2 hr to remove residual solvent (Jayasawal et al., 2022; Lohot et al, 2020; Yousif et al, 2023). Then the procedure is repeated for second entrapment step (Table 1) (Alburyhi et al, 2025; Rajab and Jawad, 2016; Shukla et al., 2016; Mohite, 2016; Mohiuddin, 2019; Wani et al., 2022).

Table 1: Novel methods of preparation of microsponge.
MethodsMeritsDemerits
w/o/w emulsion solvent diffusionSuitable for delivering proteins, peptides, and water-soluble medicationsThe use of water-insoluble surfactants in this method may result in residual surfactants within the final microsponge product.
o/o emulsion solvent diffusionFree of surfactant residuesThorough washing is necessary to remove any traces of organic solvents. Can be time consuming.
Porogen incorporationProduces microsponges characterized by a highly porous structure and acceptable content uniformity.Sometimes cause disruption of the microsponge.
Vibrating Orifice Aerosol Generator [VOAG] methodSuitable for targeted drug delivery, with specific applications in colon-specific drug release.Should be performed under reflux conditions.
Ultrasound- assisted ProductionFaster and reproducible results shall be obtained. No traces of solvent observed.Irregular structure is obtained. Requires crosslinking agents that may be toxic and the drug may bind to the monomers.
LyophilizationQuick results are produced and easy to manufacture.The process may lead to cracking or shrinking of the Microsponges.
Electron-hydrodynamic atomization methodQuick results obtainedControlling the particle size and pore size is difficult and needs expertise.

Mechanism of drug release on topical application of microsponge sunscreen or any other cosmetic agent

The Microsponge has an open porous structure which facilitates free in and out movement of particles into the vehicle until equilibrium is obtained and the vehicle becomes saturated. The vehicle can be a cream base, gel or lotion (Sander et al., 2020). When applied to the skin, these finished products allow for the absorption of the sun protection agent or cosmetic actives into the skin (Pramila and Ramraj, 2019). As the drug is absorbed, the concentration of actives in the vehicle reduces leading to unsaturation which disrupts the equilibrium which was maintained by the free movement of the drug particles from the microsponges. Further again, movement of active particles from the microsponges into the vehicle takes place (Sharma et al., 2020). This process continues until the whole vehicle is absorbed onto the skin (Figure 2). The slow release on actives occurs from the microsponges therefore retaining the active on the skin for a prolonged duration. The selection of vehicle plays a very important role in the drug release mechanism (Figure 3) (Das et al., 2022). Achieving gradual release becomes challenging when the active ingredient exhibits high solubility within the delivery vehicle. Therefore, a vehicle with low solubility power with the active should be selected. Another way to prevent undesired leaching of active from the microsponges is by addition of free and some entrapped active in the product so that the vehicle is pre-saturated (Figure 4) (Wani et al., 2022; Mansi et al., 2019).

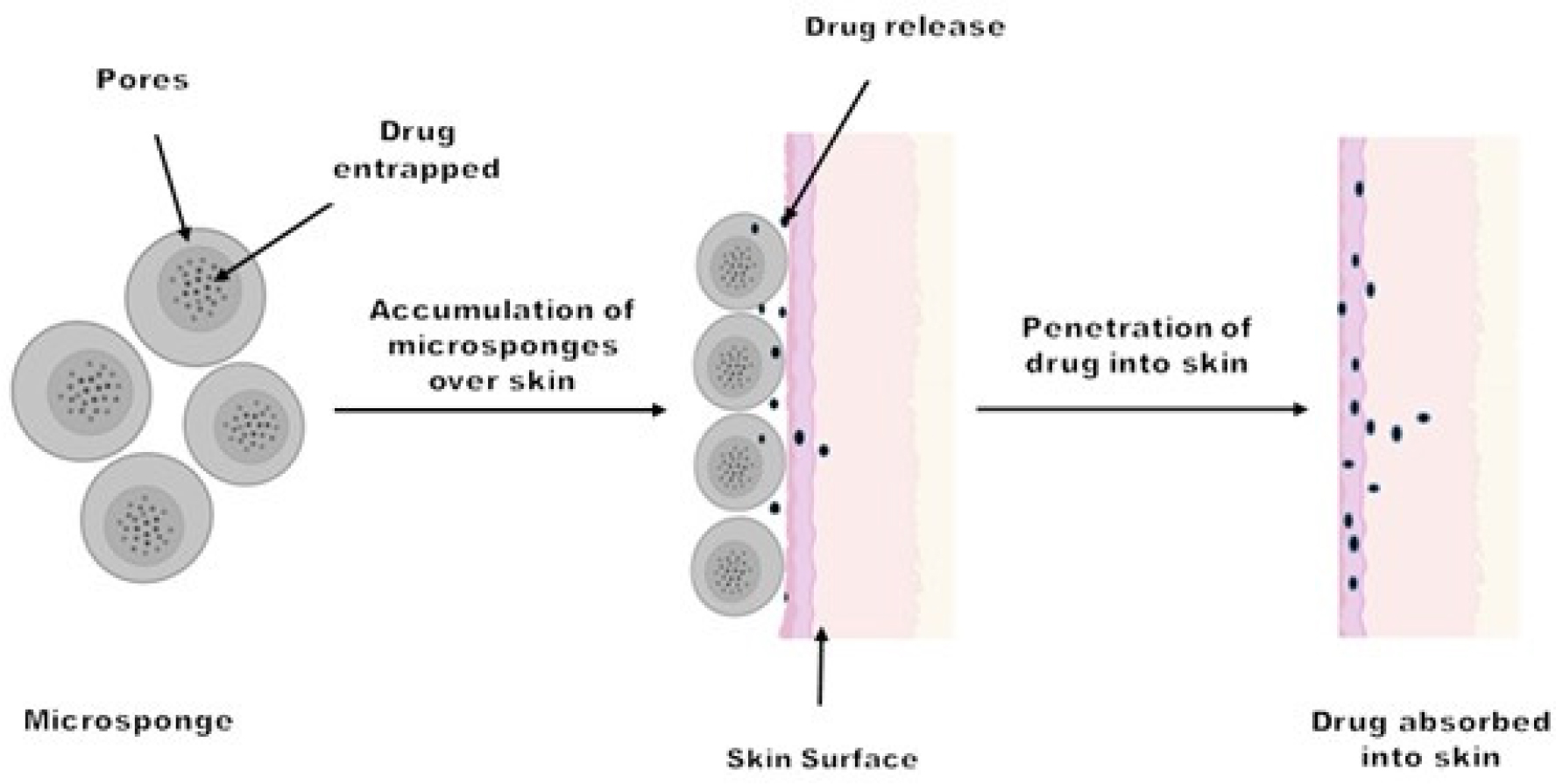

Figure 4: Schematic representation of drug release from the loaded microsponges.

Release kinetics and release mechanism

Microsponge release mechanisms primarily encompass two categories: sustained release and on-demand release. To achieve controlled release of functional substances over time, microsponge delivery systems can be designed to respond to external stimuli through the implementation of specific programmed parameters (Christensen et al., 1977).

Sustained or time-release

The Physicochemical parameters considered for development of sustained release microsponges are viscosity, volatility, and solubility of entrapped active substances. Whereas parameters related to polymeric microsponges are pore diameter, volume and resiliency (Latha et al., 2013).

Release on command

Drug release from microsponges can be modulated by external stimuli to achieve controlled release over time. The various triggers are: pressure release, where the microsponge is pressed releasing out the active particles on the skin, pH-based release of the particle is obtained by modifying the coating of the microsponge (Sato et al., 1988). Temperature is also an important trigger. An increase in skin temperature leads to an increase in both blood flow and drug release rate (Jain and Jain, 2016). Water solubility of the active is also a trigger for release of the drug from the microsponge.

Release kinetics

Various kinetic models are used to explain the true release mechanism of drug from a dosage form (Ozturk et al., 1988). In vitro drug release studies on microsponges have consistently shown an inverse relationship between the polymer amount within the microsponge and the rate of drug release (Mauger et al., 1986; Polli et al., 1997). Description of various release kinetic models used to determine release kinetics of microsponges are as follows:

Zero order kinetics

A graph of cumulative drug release plotted against time can demonstrate slow drug release from a dosage form. Zero-order release kinetics are typically observed in dosage forms that maintain their structural integrity, such as transdermal systems, polymeric microspheres, matrix tablets, and osmotic systems (Banker et al., 2002).

First order kinetics

A graph of the logarithm of the cumulative amount of drug retained plotted against time can be used to analyze first-order processes, such as drug absorption, elimination, and the dissolution profiles of dosage forms like transdermal patches and matrix systems (Korsmeyer et al., 1983).

Korsmeyer and Peppas model

A graph is plotted of log cumulative drug release and log time. Explains the drug release from polymeric system (Peppas, 1985; Higuchi, 1963).

Higuchi model

A graph of cumulative drug release against the square root of time is commonly used to analyze drug release data. This method, often referred to as Higuchi kinetics, is particularly useful for describing drug release from matrix systems, such as transdermal patches and polymeric matrices, where diffusion through a polymeric barrier is the primary release mechanism (Hixson and Crowell, 1931).

Hixon Crowell model

A Hixson-Crowell plot, where the cube root of the amount of drug remaining is plotted against time, demonstrates a relationship between the surface area and volume of a dissolving particle. This model is particularly useful for describing drug release from dosage forms where dissolution occurs predominantly through parallel planes, such as in certain types of tablets or pellets (Baker and Lonsdale, 1974).

Baker and Lonsdale model

A graph between [d(Mt/M∞)]/dt and root of timeinverse. This model gives the release of drug from spherical matrices (Martin, 1960).

Therefore, from studying the above various models and comparing the studies, the release kinetics of microsponges can be analyse using the following mathematical model:

By plotting the logarithm of the cumulative amount of drug released (log Q) against the logarithm of time (log t), the slope and intercept of the resulting line can be determined. These values can then be used to calculate kinetic parameters, providing insights into the drug release mechanism. Further the data can also be subjected for comparison study using Higuchi equation.

Characterization parameters of Microsponges used as sunscreens

Particle size and distribution

Particle size and size distribution are determined using optical or electron microscopy. Particle size analysis of loaded and unloaded particles can be performed using laser light diffractometry. Particle size is an important parameter, as it affects the texture and stability of the formulation. For all formulations, the d50 is represented by a mean size range (Kumar, 2018). The effect of particle size on drug release is shown by plotting cumulative release against time (D'Emanuele and Dinarvand, 1995).

Characterization of Morphology and Surface Topography

To determine morphology and surface topography different methods are used, like Scanning Electron Microscopy (SEM), Transmission Electron Microscopy (TEM), Photon Correlation Spectroscopy (PCS). SEM is commonly used to examine the surface morphology of microsponges coated with gold-palladium under argon at room temperature (Kaur, 2024).

Determination of pH

The pH of a topical treatment or microsponge containing gel can be measured using an advanced pH metre.

Production yield and Loading efficiency

To determine production yield, the final weight of the microsponges is compared to the initial weight of the raw materials.

The loading efficiency is obtained by drug extraction and calculated by using the following equation (Kılıçarslan and Baykara, 2003).

True density, rheological properties and compressibility

The true density was determined using Ultra-pycnometer which is performed under helium gas environment. The compressibility was determined by simple tapping method. Microsponges generally show good compression characteristics (Washburn, 1921). The rheological property includes the viscosity which was determined using Brookfield Viscometer. Viscosity is determined by the final product that is either gel, cream or lotion.

Microsponge Pore Structure and Volume

Mercury intrusion porosimetry and gas sorption were used to determine pore structure. Pore volume controls the intensity and duration of API effectiveness. Mercury intrusion porosimetry can determine various microsponges porosity parameters, including pore size distribution, intrusion-extrusion isotherms, total pore surface area, average pore diameter, pore shape and morphology, and bulk and apparent density (Orr, 1969; 2004). Pore diameter is calculated using the Washburn equation:

The % porosity of a sample was found from equation.

Polymer/Monomer composition

Microsponges drug release is optimized by controlling particle size, drug loading, and polymer composition. Here various polymer and monomer combinations are screened for their suitability with the drugs by studying their drug release profile. The polymer composition plays a critical role in controlling the release rate of the entrapped drug, as it directly influences the equilibrium distribution (partition coefficient) of the drug between the vehicle and the microsponges. Polymers with diverse electrical charges and hydrophilicity/lipophilicity are synthesized to offer versatile drug release profiles (Ford and Timmins, 1989).

Compatibility Studies

The drug-excipient compatibility studies are necessary to prevent unwanted chemical reactions that could compromise the efficacy or safety of the final drug product. Compatibility is studied by using different methods like X-ray Diffractometry (XRD), Differential Scanning Calorimetry (DSC), Fourier Transform Infrared Spectroscopy (FT-IR), and Thin layer Chromatography (TLC). X-ray Diffraction (XRD) and Differential Scanning Calorimetry (DSC) are commonly employed techniques to investigate the influence of polymerization on the crystalline structure of a drug (Jones and Pearce, 1995; Barkai et al., 1991).

Resiliency

Resiliency means the viscoelastic property of the microsponges which makes it softer or firmer. The resiliency of the microsponge is to be studied to prepare the microsponges per the need of the final formulation. But there are no optimized methods developed to determine the resiliency of microsponges. Hence resiliency is studied by considering releases function of crosslinking with time (Bandara et al., 2023).

Drug release profile determination

The dissolution profile of microsponges can be determined using USP XXIII or dissolution apparatus II The dissolution apparatus USP II is usually used for oral use formulation where parameters are set as temperature 37 ± 0.5oC, rotation of 100 rpm and using physiological pH mediums for a stated period. In the case of topical microsponges, the dissolution profile is typically assessed using the USP XXII apparatus. This apparatus is fitted with a modified basket incorporating a 5 μm stainless steel mesh. The rotation speed is maintained at 150 rpm, and the dissolution medium is chosen according to the solubility of the active pharmaceutical ingredient (Andini, 2023).

Sun Protection Factor testing (SPF)

Microsponges after incorporating into a vehicle and forming the final product, which can be a gel, cream or lotion, is to be tested for its efficacy as a sun protective agent/Sunscreen.

Nowadays even various other cosmetics have sun protective properties. Hence these formulations should be tested for the SPF. This is done by determining the Minimal Erythemal Dose (MED). MED is determined by using two groups of Wister rats. The dorsal region is shaved. First group is kept under Mercury Vapor lamp that emits UV radiation without applying the formulation. While the second group is applied with formulation and kept under the Lamp. The minimum time required for erythema to occur, i.e., MED is to be noted for both groups. And SPF is determined by using the given formula (Choudhary and Akhtar, 2022).

Safety considerations of Microsponges

A comprehensive safety evaluation of microsponges involves assessing skin and eye irritation, oral toxicity, and allergenicity using appropriate animal models (rabbits, rats, and guinea pigs, respectively) (Li et al., 2013).

APPLICATION

Application of microsponges with respect to their advantages

The microsponge delivery system offers significant benefits for drug products, including enhanced stability, improved safety profiles, increased effectiveness, and better overall quality. Microsponges are most used as topical preparations, but recently there are also used in oral administration. Microsponges give controlled and sustained release of the actives. It helps to deliver a minimum dose of the drug onto the surface. Microsponges are widely used in pharmaceutical industries as well as cosmetic industry. There are various patents regarding the microsponge preparations. Some over the counter products made of microsponges are moisturizers, sunscreens, anti-acne creams, and Rejuvenating products.

Application of microsponges for Topical Drug Delivery

Microsponges show targeted delivery of drug at low dose, with modified drug release pattern, enhanced stability and reduced side effects. Increased skin residence time is seen in the ex vivo drug disposition study. Due to enhanced residence time microsponges also show better Bioavailability. Microsponges show reduced side effects because less amount of drug enters into the systemic circulation (Deshmukh and Poddar, 2012). Microsponges are used in Anti-acne agents like Benzoyl Peroxide, to manage acne lesions and reduce oiliness of skin. Skin depigmentation agents like hydroquinone are also formed of microsponges, which showed better stabilization against oxidation and an improved efficacy (Thavva et al., 2019). Anti-fungal agents like fluconazole were also evaluated for its activity. The studies showed a 13.5 mm zone of inhibition, indicating enhanced antifungal activity of the microsponge formulation over conventional formulations (Osmani et al., 2015). Further studies were conducted on Oxybenzone, sun protective agent, where the marketed Oxybenzone sunscreen caused skin irritation, but microsponge incorporated Oxybenzone not only reduced the skin irritation but also enhanced the SPF of the sunscreen. Anti-arthritis agents like Diclofenac sodium in microsponge formulation show better drug release than the conventional formulations and also shows a Viscous module with pseudo plastic flow (Kumar and Akhtar, 2022). Microsponges are useful for anti-dandruff agents like zincpyrithione, because it reduces the unpleasant odor of the drug. It also reduces skin irritation. Commonly used for Anti-pruritic agent and anti-inflammatory agents, because of its long-lasting activity.

Application of microsponges for oral drug delivery

It is a novel drug delivery system for microsponges. Drugs with poor water solubility can been trapped in the pores of microsponges which enhancing drug solubilization. Since microsponges show targeted drug delivery, it is useful in colonic-specific drug targeting Owing to their small size (≤200), microsponges are easily phagocytosed by colonic macrophages, resulting in a localized drug action at the target site (Draize, 1944). Examples of microsponge drug delivery with their different formulation (Table 2) (Mandava and Thavva, 2012; Patravale and Mandawgade, 2008; Leyden et al., 2002; Wester et al., 1991; Disouza et al., 2001; Gajendra et al., 2024; Iwai et al., 2004; Chen et al., 2005; He et al., 2020; Yadav et al., 2017; Maheshwari et al., 2017; Rajab and Jawad, 2016; Patel, 2017; Gangadharappa et al., 2013). Patents related to microsponge technology (Table 3) (David, 2011).

Table 2: Different formulations of microsponge drug delivery with examples.
Microsponge delivery systemDrugPurpose
GelsOxybenzoneSun protective agent
LornoxicamAnalgesic
Oxticonazole nitrateAnti-fungal agent
DapsoneAnti-acne agent
BenzoylperoxideAnti-acne agent
FluconazoleAnti-fungal agent
MupirocinAnti-bacterial activity
DiclofenacsodiumAnti-inflammatory agent
AcyclovirAnti-viral agent
Hydroxyzine HClDermatitis treatment
Terbinafine HClAnti-fungal agent
LotionsBenzoyl peroxideAnti-acne agent
CreamsHydroquinone and retinolMelanoma
TabletsNicorandilAnti-angina agent
PiroxicamAnalgesic
NifedipineHypertension treatment
ResveratrolAntioxidants
IndomethacinAnti-inflammatory agent
Chlorpheniramine maleateHay fever
KetoprofenMusculoskeletal pain
FenofibrateGout treatment
FlurbiprofenMetabolic ratio
DicyclomineAnti-cholinergic agent
MeloxicamAnti-arthritis agent
ImplantsPoly(DL-lactic-co-glycolic acid)Skin tissue engineering
InjectionBasic fibro blast growth factorGrowth factor
GraftsPoly(Lactic-Co Glycolic Acid)Cardiovascular surgery
OthersMefenamic acidRheumatoid arthritis
IbuprofenNSAID
Table 3: Various patents filed related to microsponges.
Patent numberInventorsTopicPublication date
US4690825Won, RichardFor incorporation of drug compound in to the microsponges.1987
US4863856Dean et al.Weighed collagen microsponges for immobilizing microorganisms.1989
US5292512Schaefer et al.Cosmetic composition for topical preparations1989
US5135740Katz et al.Immiscible phases1992
US5679374Fanchon; Chantal et al.Management of acne with two-steps1994
US5316774Eury, Robert P et al.Formulation of polymeric particle matrix for the controlled release of Bioactive compound.1994
US5725869Lo; Ray J.R.Microsphere prepared by solvent evaporation.1996
US6395300Straub et al.Entrapping of poorly water-soluble drug in the microsponges.1999
US6211250Tomlinson et al.Topical application microsponges.2001
US20030232091Shefer et al.Microsponges2002
US20040247632Cataneo, MaurizioMicrosponges2004
US20050271702Wright, Steven et al.Microsponges2005
KR20160131487AKoreanMicrosponges having controlled solubility2015

Recent advances in Microsponges

Several advancements in microsponge technology have been achieved through modifications of existing methods, leading to the development of nanosponges, nanoferrosponges, and porous microbeads. By reacting β-cyclodextrin with diphenyl carbonate, β- cyclodextrin-based Nano sponges are obtained. This β- cyclodextrin-based nanosponges are 3 to 5 times more effective to deliver drug to target site compared to Direct Injection (Torne et al., 2013). Nanosponges loaded with cytotoxic agents offer a targeted approach to cancer therapy due to increased drug potency. Nanoferrosponges, a novel carrier system incorporating self-pore-forming mechanisms, enhances the penetration of the active agent to its target site. The advantage of Ferro sponges is that it shows higher swelling ratio with excellent elasticity and hydrophilicity (Hu et al., 2007).

Recently open cell microsponge Polyimide (PI) film is produced, which shows heat insulation, thermal stability and chemical resistance (Kwon et al., 2015). A recent development in microbead technology is the production of porous microbeads via a high internal phase emulsion method. This method involves a continuous oil phase containing monomer, a crosslinking agent, and an aqueous internal phase. The use of microbeads as a delivery system for siRNA presents a novel therapeutic route due to their demonstrated ability to improve RNA stability and facilitate relatively effective siRNA encapsulation (Roh et al., 2014).

Future of Microsponges

Microsponges holds a bright future due to its wide pharmaceutical application and unique property like high loading efficiency, small size, better target delivery, controlled release. Improved stability (physical, chemical, and thermal) and reduced side effects. Microsponges possess a greater capacity for drug loading than liposomes and provide enhanced control over drug release compared to microcapsules. Microsponges offer advantages such as ease of preparation and better compressibility than powder mixtures (Çomoglu et al., 2002). The future challenges are the development of drug delivery system for oral peptide delivery. Microsponges require further development for administration via alternative routes, including parenteral and pulmonary. Beyond drug delivery, these particles show promise as cell culture media, potentially including applications in stem cell culture and cellular regeneration. The cosmetic industry widely uses microsponges because of their elegant properties. These novel formulations also open new avenues for drug delivery.

CONCLUSION

The microsponges offer a versatility in application and advantages. The microsponges are widely used in cosmetic industry because of its aesthetic appearance and elegance. They are also employed in pharmaceutical industry as they show controlled release, enhanced loading efficiency, smaller size, improved stability and increased drug release profile. The main property that is seen in microsponges is reduced side effects, non-irritant, non-toxic, non-mutagenic giving an enhanced safety. Compared to the conventional delivery system, the microsponges delivery system gives better treatment for topical diseases. It also has potential for use in oral delivery system and ocular delivery system. Microsponges also has a better ingredient compatibility and are easy to prepare. Consequently, the microsponge drug delivery system represents a promising area of development within both the cosmetic and pharmaceutical industries and merits further investigation.

REFERENCES

As published

Showing references and in-text citations exactly as published.

  1. 1.Adepu, S.; Ramakrishna, S.. Controlled drug delivery systems: current status and future directions. Molecules. 2021;26(19):5905. https://doi.org/10.3390/molecules26195905DOIGOOGLE SCHOLAR
  2. 2.Alburyhi, M. M.; Yahya, T. A.; Saif, A. A.; Noman, M. A.. Formulation and Evaluation of Lornoxicam Microsponge-Based Gel as A Transdermal Drug Delivery Systems. World Journal of Pharmaceutical and Life Sciences. 2025;11(5):200–217.GOOGLE SCHOLAR
  3. 3.Aloorkar, N. H.; Kulkarni, A. S.; Ingale, D. J.; Patil, R. A.. Microsponges as innovative drug delivery systems. Int J Pharm Sci Nanotechnol. 2012;5(1):1597–1606.GOOGLE SCHOLAR
  4. 4.Andini, A.. Penentuan Nilai Sun Protection Factor (Spf) Ekstrak Bonggol Pisang Kepok (Musa Paradisiaca L.) Dengan Metode Spektrofotometri UV-vis. Hexagon. 2023;4(1):40–45. https://doi.org/10.36761/hexagon.v4i1.2067DOIGOOGLE SCHOLAR
  5. 5.Arya, P.; Pathak, K.. Assessing the viability of microsponges as gastro retentive drug delivery system of curcumin: optimization and pharmacokinetics. International journal of pharmaceutics. 2014;460(1-2):1–12. https://doi.org/10.1016/j.ijpharm.2013.10.045DOIGOOGLE SCHOLAR
  6. 6.Baker, R. W.; Lonsdale, H. K.. Controlled release: mechanisms and rates. Advances in experimental medicine and biology. 1974;15–71. https://doi.org/10.1007/978-1-4684-7239-4_2DOIGOOGLE SCHOLAR
  7. 7.Bandara, H. M. S. K. H.; Alakolanga, A. G. A. W.; Amarasinghe, N. R.; Adikaram, N. K. B.; Jayasinghe, L.; Fujimoto, Y.. Antiviral Activities of Some Traditional Medicinal Plants of Sri Lanka. Current Traditional Medicine. 2023;9(6):25–38. https://doi.org/10.2174/2215083809666221229112115DOIGOOGLE SCHOLAR
  8. 8.Modern pharmaceutics. CRC Press.. 2002.GOOGLE SCHOLAR
  9. 9.Barkai, A.; Pathak, Y. V.; Benita, S.. Polyacrylate (Eudragit retard) microspheres for oral controlled release of nifedipine: formulation design and process optimization. Pharmaceutical Technology: Controlled Drug Release. 1991;2:105–117. https://doi.org/10.3109/03639049009023640DOIGOOGLE SCHOLAR
  10. 10.Bhatia, M.; Saini, M.. Formulation and evaluation of curcumin microsponges for oral and topical drug delivery. Progress in biomaterials. 2018;7(3):239–248.GOOGLE SCHOLAR
  11. 11.Borawake Payal, D.; Arumugam, K.; Shinde Jitendra, V.; Chavan Rajashree, S.. Microsponge as an emerging technique in novel drug delivery system. Journal of Drug Delivery and Therapeutics. 2021;11(1):171–181. https://doi.org/10.22270/jddt.v11i1.4492DOIGOOGLE SCHOLAR
  12. 12.Chadawar, V.; Shaji, J.. Microsponge delivery system. Current drug delivery. 2007;4(2):123–129. https://doi.org/10.2174/156720107780362320DOIGOOGLE SCHOLAR
  13. 13.Chen, G.; Sato, T.; Ohgushi, H.; Ushida, T.; Tateishi, T.; Tanaka, J.. Culturing of skin fibroblasts in a thin PLGA-collagen hybrid mesh. Biomaterials. 2005;26(15):2559–2566. https://doi.org/10.1016/j.biomaterials.2004.07.034DOIGOOGLE SCHOLAR
  14. 14.Choudhary, A.; Akhtar, M. S.. Microsponge drug delivery system: Emerging technique in novel drug delivery system and recent advances. Research Journal of Pharmacy and Technology. 2022;15(10):4835–4840. https://doi.org/10.52711/0974-360X.2022.00812DOIGOOGLE SCHOLAR
  15. 15.Chowdary, K. P. R.; Rao, Y. S.. Mucoadhesive microspheres for controlled drug delivery. Biological and pharmaceutical Bulletin. 2004;27(11):1717–1724. https://doi.org/10.1248/bpb.27.1717DOIGOOGLE SCHOLAR
  16. 16.Christensen, M. S.; Hargens, C. W.; Nacht, S.; Gans, E. H.. Viscoelastic properties of intact human skin: instrumentation, hydration effects, and the contribution of the stratum corneum. Journal of Investigative Dermatology. 1977;69(3):282–286. https://doi.org/10.1111/1523-1747.EP12507500DOIGOOGLE SCHOLAR
  17. 17.Clifford, D. A.. Nitrate Removal from Water Supplies by Ion Exchange: Resin Selectivity and Multicomponent, Chromatographic Column Behavior of Sulfate, Nitrate, Chloride and Bicarbonate. University of Michigan.. 1976.GOOGLE SCHOLAR
  18. 18.Çomoglu, T.; Gönül, N.; Baykara, T.. The effects of pressure and direct compression on tabletting of microsponges. International journal of pharmaceutics. 2002;242(1-2):191–195. https://doi.org/10.1016/S0378-5173(02DOIGOOGLE SCHOLAR
  19. 19.Çomoğlu, T.; Gönül, N.; Baykara, T.. Preparation and in vitro evaluation of modified release ketoprofen microsponges. Il farmaco. 2003;58(2):101–106. https://doi.org/10.1016/S0014-827X(02DOIGOOGLE SCHOLAR
  20. 20.D’Orazio, J.; Jarrett, S.; Amaro-Ortiz, A.; Scott, T.. UV radiation and the skin. International journal of molecular sciences. 2013;14(6):12222–12248. https://doi.org/10.3390/ijms140612222DOIGOOGLE SCHOLAR
  21. 21.Das, A.; Chakraborty, P.; Khatiwara, B.; Dhakal, J.; Sarangi, S.; Singh, S. et al. Herbal microsponge incorporated sunscreen gel: A novel strategy. Biomedicine. 2022;42(5):844–850. https://doi.org/10.51248/.v42i5.2016DOIGOOGLE SCHOLAR
  22. 22.David, F.. Nanosponge drug delivery system more effective than direct injection. Pharm Dev Technol. 2011;16(4):367–376.GOOGLE SCHOLAR
  23. 23.Deasy, P. B.. Microencapsulation and related drug processes. Drugs and the pharmaceutical sciences. 1984;20.GOOGLE SCHOLAR
  24. 24.D'Emanuele, A.; Dinarvand, R.. Preparation, characterisation, and drug release from thermoresponsive microspheres. International journal of pharmaceutics. 1995;118(2):237–242. https://doi.org/10.1016/0378-5173(94DOIGOOGLE SCHOLAR
  25. 25.Deshmukh, K.; Poddar, S. S.. Tyrosinase inhibitor-loaded microsponge drug delivery system: new approach for hyperpigmentation disorders. Journal of microencapsulation. 2012;29(6):559–568. https://doi.org/10.3109/02652048.2012.668955DOIGOOGLE SCHOLAR
  26. 26.Disouza, J. I.; Saboji, J. K.; Jyothi, M. H.; Patil, C. S.. In vitro antibacterial and skin irritation studies of microsponges of benzoyl peroxide. INDIAN DRUGS-BOMBAY-. 2001;38(7):361–362.GOOGLE SCHOLAR
  27. 27.Draize, J. H.. Methods for the study of irritation and toxicity of substances applied topically to the skin and the mucous membranes. J. Pharmacol. Exp. Ther. 1944;82:377–390. https://doi.org/10.1016/j.jbiosc.2008.11.018DOIGOOGLE SCHOLAR
  28. 28.Embil, K.; Nacht, S.. The microsponge® delivery system (MDS): a topical delivery system with reduced irritancy incorporating multiple triggering mechanisms for the release of actives. Journal of microencapsulation. 1996;13(5):575–588. https://doi.org/10.3109/02652049609026042DOIGOOGLE SCHOLAR
  29. 29.Ford, J. L.; Timmins, P.. Pharmaceutical thermal analysis: techniques and applications. (No Title). 1989.GOOGLE SCHOLAR
  30. 30.Gajendra, T.; Suresh, C.; Naresh, K.. Formulation of microsponges of anti-fungal drugs and their pharmacokinetic and in vitro analysis. Tropical Journal of Pharmaceutical and Life Sciences. 2024;11(2):24–42. https://doi.org/10.61280/tjpls.v11i2.158DOIGOOGLE SCHOLAR
  31. 31.Gangadharappa, H. V.; Vishal Gupta, N.; Chandra Prasad, M. S.; Shivakumar, H. G.. Current trends in microsponge drug delivery system. Current drug delivery. 2013;10(4):453–465.GOOGLE SCHOLAR
  32. 32.Gidde, N; Karande, K; Jadhav, S; Mistry, R; Mhetre, P; Joshi, S.. "Microsponge: An Overview. Jusst Journal. 2021;23:671–682.GOOGLE SCHOLAR
  33. 33.Grochowicz, M.; Bartnicki, A.; Gawdzik, B.. Preparation and characterization of porous polymeric microspheres obtained from multifunctional methacrylate monomers. Journal of Polymer Science Part A: Polymer Chemistry. 2008;46(18):6165–6174. https://doi.org/10.1002/pola.22927DOIGOOGLE SCHOLAR
  34. 34.He, Y.; Majid, K.; Maqbool, M.; Hussain, T.; Yousaf, A. M.; Khan, I. U. et al. Formulation and characterization of lornoxicam-loaded cellulosic-microsponge gel for possible applications in arthritis. Saudi Pharmaceutical Journal. 2020;28(8):994–1003. https://doi.org/10.1016/j.jsps.2020.06.021DOIGOOGLE SCHOLAR
  35. 35.Higuchi, T. J. J. O. P. S.. Mechanism of sustained‐action medication. Theoretical analysis of rate of release of solid drugs dispersed in solid matrices. Journal of pharmaceutical sciences. 1963;52(12):1145–1149. https://doi.org/10.1002/jps.2600521210DOIGOOGLE SCHOLAR
  36. 36.Hixson, A. W.; Crowell, J. H.. Dependence of reaction velocity upon surface and agitation. Industrial and engineering chemistry. 1931;23(8):923–931. https://doi.org/10.1021/ie50260a018DOIGOOGLE SCHOLAR
  37. 37.Hu, S. H.; Liu, T. Y.; Liu, D. M.; Chen, S. Y.. Nano-ferrosponges for controlled drug release. Journal of Controlled Release. 2007;121(3):181–189. https://doi.org/10.1016/j.jconrel.2007.06.002DOIGOOGLE SCHOLAR
  38. 38.Iwai, S.; Sawa, Y.; Ichikawa, H.; Taketani, S.; Uchimura, E.; Chen, G. et al. Biodegradable polymer with collagen microsponge serves as a new bioengineered cardiovascular prosthesis. The Journal of Thoracic and Cardiovascular Surgery. 2004;128(3):472–479. https://doi.org/10.1016/j.jtcvs.2004.04.013DOIGOOGLE SCHOLAR
  39. 39.Jadhav, N.; Patel, V.; Mungekar, S.; Bhamare, G.; Karpe, M.; Kadams, V.. Microsponge delivery system: an updated review, current status and future prospects. Journal of Scientific and Innovative Research. 2013;2(6):1097–1110.GOOGLE SCHOLAR
  40. 40.Jain, A.; Jain, S. K.. Multipronged, strategic delivery of paclitaxel-topotecan using engineered liposomes to ovarian cancer. Drug development and industrial pharmacy. 2016;42(1):136–149. https://doi.org/10.3109/03639045.2015.1036066DOIGOOGLE SCHOLAR
  41. 41.Jayasawal, P.; Rao, N. R.; Jakhmola, V.. Microsponge as novel drug delivery system: A review. Drug Delivery System. 2022;4:6. https://doi.org/10.35652/IGJPS.2022.12002DOIGOOGLE SCHOLAR
  42. 42.Jelvehgari, M.; Siahi-Shadbad, M. R.; Azarmi, S.; Martin, G. P.; Nokhodchi, A.. The microsponge delivery system of benzoyl peroxide: Preparation, characterization and release studies. International journal of pharmaceutics. 2006;308(1-2):124–132. https://doi.org/10.1016/j.ijpharm.2005.11.001DOIGOOGLE SCHOLAR
  43. 43.Jones, D. S.; Pearce, K. J.. An investigation of the effects of some process variables on the microencapsulation of propranolol hydrochloride by the solvent evaporation method. International journal of pharmaceutics. 1995;118(2):199–205. https://doi.org/10.1016/0378-5173(94DOIGOOGLE SCHOLAR
  44. 44.Jyothi, K. N.; Kumar, P. D.; Arshad, P.; Karthik, M.; Panneerselvam, T.. Microsponges: a promising novel drug delivery system. J Drug Deliv Ther. 2019;9(5-s):188–194. https://doi.org/10.22270/jddt.v9i5-s.3649DOIGOOGLE SCHOLAR
  45. 45.Kaur, M.; Rani, R.; Singh, A. P.; Singh, A. P.. Microsponge: A Review. Journal of Drug Delivery and Therapeutics. 2024;14(9).GOOGLE SCHOLAR
  46. 46.Kaur, M.; Rani, R.; Singh, A. P.; Singh, A. P.. Microsponge: A Review. Journal of Drug Delivery and Therapeutics. 2024;14(9). https://doi.org/10.22270/jddt.v14i6.6620DOIGOOGLE SCHOLAR
  47. 47.KAWASHIMA, Y.; NIWA, T.; TAKEUCHI, H.; HINO, T.; ITO, Y.. Control of prolonged drug release and compression properties of ibuprofen microsponges with acrylic polymer, Eudragit RS, by changing their intraparticle porosity. Chemical and pharmaceutical bulletin. 1992;40(1):196–201. https://doi.org/10.1248/cpb.40.196DOIGOOGLE SCHOLAR
  48. 48.Khule, P. K.; Nitalikar, M. M.; More, V. V.; Gilhotra, R. M.. Microsponge drug delivery: a review. SGVU J Pharm Res Educ. 2019;4(1):359–365.GOOGLE SCHOLAR
  49. 49.Kılıçarslan, M.; Baykara, T.. The effect of the drug/polymer ratio on the properties of the verapamil HCl loaded microspheres. International journal of pharmaceutics. 2003;252(1-2):99–109. https://doi.org/10.1016/S0378-5173(02DOIGOOGLE SCHOLAR
  50. 50.Kircik, L. H.. Microsphere technology: hype or help?. The Journal of clinical and aesthetic dermatology. 2011;4(5):27.GOOGLE SCHOLAR
  51. 51.Korsmeyer, R. W.; Gurny, R.; Doelker, E.; Buri, P.; Peppas, N. A.. Mechanisms of solute release from porous hydrophilic polymers. International journal of pharmaceutics. 1983;15(1):25–35. https://doi.org/10.1016/0378-5173(83DOIGOOGLE SCHOLAR
  52. 52.Kumar, N.; Akhtar, S.. Microsponges: A Futuristic Approach for Oral Drug Delivery and Current Status. Indian Journal of Public Health Research and Development. 2022;13(2). https://doi.org/10.37506/ijphrd.v13i2.17900DOIGOOGLE SCHOLAR
  53. 53.Kumar, S. C. S.. Solid lipid nanoparticles containing asiaticoside: development of topical delivery formulation. RGUHS Journal of Pharmaceutical Sciences. 2018;8(2). https://doi.org/10.5530/rjps.2018.2.1DOIGOOGLE SCHOLAR
  54. 54.Kumari, A.; Jain, A.; Hurkat, P.; Verma, A.; Jain, S. K.. Microsponges: a pioneering tool for biomedical applications. Critical Reviews™ in Therapeutic Drug Carrier Systems. 2016;33(1).GOOGLE SCHOLAR
  55. 55.Kwon, J.; Kim, J.; Park, D.; Han, H.. A novel synthesis method for an open-cell microsponge polyimide for heat insulation. Polymer. 2015;56:68–72. https://doi.org/10.1016/j.polymer.2014.06.090DOIGOOGLE SCHOLAR
  56. 56.Latha, M. S.; Martis, J.; Shobha, V.; Shinde, R. S.; Bangera, S.; Krishnankutty, B. et al. Sunscreening agents: a review. The Journal of clinical and aesthetic dermatology. 2013;6(1):16.GOOGLE SCHOLAR
  57. 57.Lengyel, M.; Kállai-Szabó, N.; Antal, V.; Laki, A. J.; Antal, I.. Microparticles, microspheres, and microcapsules for advanced drug delivery. Scientia pharmaceutica. 2019;87(3):20. https://doi.org/10.3390/scipharm87030020DOIGOOGLE SCHOLAR
  58. 58.Leyden, J. J.; Tanghetti, E. A.; Miller, B.; Ung, M.; Berson, D.; Lee, J.. Once-daily tazarotene 0.1% gel versus once-daily tretinoin 0.1% microsponge gel for the treatment of facial acne vulgaris: a double-blind randomized trial. Cutis. 2002;69(2 Suppl):12–19.GOOGLE SCHOLAR
  59. 59.Li, S. S.; Li, G. F.; Liu, L.; Jiang, X.; Zhang, B.; Liu, Z. G. et al. Evaluation of paeonol skin-target delivery from its microsponge formulation: in vitro skin permeation and in vivo microdialysis. PloS one. 2013;8(11):e79881. https://doi.org/10.1371/journal.pone.0079881DOIGOOGLE SCHOLAR
  60. 60.Liu, P.; Chen, G.; Zhang, J.. A review of liposomes as a drug delivery system: current status of approved products, regulatory environments, and future perspectives. Molecules. 2022;27(4):1372. https://doi.org/10.3390/molecules27041372DOIGOOGLE SCHOLAR
  61. 61.Lohot, S.; Yadav, A.; Kakade, S.; Veer, V.; Bhosale, A.. A review on microsponges: a novel drug delivery system. Journal of Current Pharma Research. 2020;10(2):3615–3629.GOOGLE SCHOLAR
  62. 62.Ma, Y.; Yoo, J.. History of sunscreen: An updated view. Journal of cosmetic dermatology. 2021;20(4):1044–1049. https://doi.org/10.1111/jocd.14004DOIGOOGLE SCHOLAR
  63. 63.Mahant, S.; Kumar, S.; Nanda, S.; Rao, R.. Microsponges for dermatological applications: Perspectives and challenges. Asian journal of pharmaceutical sciences. 2020;15(3):273–291. https://doi.org/10.1016/j.ajps.2019.05.004DOIGOOGLE SCHOLAR
  64. 64.Maheshwari, R.; Sharma, P.; Tekade, M.; Atneriya, U.; Dua, K.; Hansbro, P. M. et al. Microsponge embedded tablets for sustained delivery of nifedipine. Pharmaceutical nanotechnology. 2017;5(3):192–202. https://doi.org/10.2174/2211738505666170921125549DOIGOOGLE SCHOLAR
  65. 65.Mandava, S. S.; Thavva, V.. Novel approach: Microsponge drug delivery system. International Journal of Pharmaceutical Sciences and Research. 2012;3(4):967.GOOGLE SCHOLAR
  66. 66.Mansi, H.; Singh, D. J.; DN, P.; Diksha, S.. A Review on Microsponge Delivery System. Journal of Drug Delivery and Therapeutics. 2019;9. https://doi.org/10.22270/jddt.v9i3-s.2938DOIGOOGLE SCHOLAR
  67. 67.Martin, A. N.. Physical Pharmacy-Physical Chemistry Principles in Pharmaceutical Science. Academic Medicine. 1960;35(10):987.GOOGLE SCHOLAR
  68. 68.Mauger, J. W.; Chilko, D.; Howard, S.. On the analysis of dissolution data. Drug Development and Industrial Pharmacy. 1986;12(7):969–992. https://doi.org/10.3109/03639048609048052DOIGOOGLE SCHOLAR
  69. 69.Mohite, P. B.; Khanage, S. G.; Harishchandre, V. S.; Yogita, S. H. I. R. S. A. T. H.. Recent advances in microsponges drug delivery system. J Crit Rev. 2016;3(1):9–16.GOOGLE SCHOLAR
  70. 70.Mohiuddin, A. K.. Sunscreen and suntan preparations. ARC Journal of Pharmaceutical Sciences (AJPS). 2019;5(2):8–44.GOOGLE SCHOLAR
  71. 71.Murkute, P. K.; Deokar, R. M.; Salve, M. T.. A Brief Review on Microsponges Drug Delivery System. World Journal of Pharmaceutical Research. 2023;12(21):391–409.GOOGLE SCHOLAR
  72. 72.Nidhi, K.; Verma, S.; Kumar, S.. Microsponge: An advanced drug delivery system. Journal of Clinical and Scientific Research. 2021;10(2):108–111. https://doi.org/10.4103/JCSR.JCSR_42_19DOIGOOGLE SCHOLAR
  73. 73.Orr Jr, C.. Application of mercury penetration to materials analysis. Powder Technology. 1969;3(1):117–123. https://doi.org/10.1016/0032-5910(69DOIGOOGLE SCHOLAR
  74. 74.Osmani, R. A. M.; Aloorkar, N. H.; Ingale, D. J.; Kulkarni, P. K.; Hani, U.; Bhosale, R. R. et al. Microsponges based novel drug delivery system for augmented arthritis therapy. Saudi pharmaceutical journal. 2015;23(5):562–572. https://doi.org/10.1016/j.jsps.2015.02.020DOIGOOGLE SCHOLAR
  75. 75.Ozturk, S. S.; Palsson, B. O.; Donohoe, B.; Dressman, J. B.. Kinetics of release from enteric-coated tablets. Pharmaceutical research. 1988;5(9):550–565. https://doi.org/10.1023/A:1015937912504DOIGOOGLE SCHOLAR
  76. 76.Patel, S. S.; Patel, M. R.; Patel, M. J.. Formulation and evaluation of microsponge based nicorandil sustained released tablet. Journal of Scientific Research. 2017;9(3):285–296. https://doi.org/10.3329/jsr.v9i3.31193DOIGOOGLE SCHOLAR
  77. 77.Patravale, V. B.; Mandawgade, S. D.. Novel cosmetic delivery systems: an application update. International journal of cosmetic science. 2008;30(1):19–33. https://doi.org/10.1111/j.1468-2494.2008.00416.xDOIGOOGLE SCHOLAR
  78. 78.Peppas, N. A.. Analysis of Fickian and non-Fickian drug release from polymers. 1985.GOOGLE SCHOLAR
  79. 79.Polli, J. E.; Rekhi, G. S.; Augsburger, L. L.; Shah, V. P.. Methods to compare dissolution profiles and a rationale for wide dissolution specifications for metoprolol tartrate tablets. Journal of pharmaceutical sciences. 1997;86(6):690–700. https://doi.org/10.1021/js960473xDOIGOOGLE SCHOLAR
  80. 80.Pramila, V.; Ramraj, C.. Microsponges: A Novel Strategy to Control the Delivery Rate of Active Agents with Reduced Skin Irritancy. Journal of Drug Delivery and Therapeutics. 2019;9. https://doi.org/10.22270/jddt.v9i6-s.3757DOIGOOGLE SCHOLAR
  81. 81.Rajab, N. A.; Jawad, M. S.. Formulation and in vitro evaluation of piroxicam microsponge as a tablet. Int J Pharm Pharm Sci. 2016;8(2):104–114.GOOGLE SCHOLAR
  82. 82.Roh, Y. H.; Lee, J. B.; Shopsowitz, K. E.; Dreaden, E. C.; Morton, S. W.; Poon, Z. et al. Layer-by-layer assembled antisense DNA microsponge particles for efficient delivery of cancer therapeutics. ACS nano. 2014;8(10):9767–9780. https://doi.org/10.1021/nn502596bDOIGOOGLE SCHOLAR
  83. 83.Sander, M.; Sander, M.; Burbidge, T.; Beecker, J.. The efficacy and safety of sunscreen use for the prevention of skin cancer. Cmaj. 2020;192(50):E1802–E1808. https://doi.org/10.1503/cmaj.201085DOIGOOGLE SCHOLAR
  84. 84.Sato, T.; Kanke, M.; Schroeder, H. G.; amd DeLuca, P. P.. Porous biodegradable microspheres for controlled drug delivery. I. Assessment of processing conditions and solvent removal techniques. Pharmaceutical research. 1988;5(1):21–30. https://doi.org/10.1023/A:1015855210319DOIGOOGLE SCHOLAR
  85. 85.Schaefer, H.; Watts, F.; Papantoniou, C.; Mahieu, C.. U.S. Patent No. 5,292,512. Washington, DC: U.S. Patent and Trademark Office.. 1994.GOOGLE SCHOLAR
  86. 86.Schneider, S. L.; Lim, H. W.. A review of inorganic UV filters zinc oxide and titanium dioxide. Photodermatology, photoimmunology and photomedicine. 2019;35(6):442–446. https://doi.org/10.1111/phpp.12439DOIGOOGLE SCHOLAR
  87. 87.Serpone, N.; Dondi, D.; Albini, A.. Inorganic and organic UV filters: Their role and efficacy in sunscreens and suncare products. Inorganica chimica acta. 2007;360(3):794–802. https://doi.org/10.1016/j.ica.2005.12.057DOIGOOGLE SCHOLAR
  88. 88.Sharma, S.; Kaur, M.; Kaur, S.. Microsponge Technology as a Novel Approach for Topical Drug Delivery: An Acquainted Review. IOSR J Pharm Biol Sci. 2020;15(5):1–13. https://doi.org/10.9790/3008-1505030113DOIGOOGLE SCHOLAR
  89. 89.Shukla, A.; Garg, A.; Garg, S.. Application of microsponge technique in topical drug delivery system. Asian Journal of Biomaterial Research. 2016;2(4):120–126.GOOGLE SCHOLAR
  90. 90.Smijs, T. G.; Pavel, S.. Titanium dioxide and zinc oxide nanoparticles in sunscreens: focus on their safety and effectiveness. Nanotechnology, science and applications. 2011;95–112.GOOGLE SCHOLAR
  91. 91.Srivastava, R.; Pathak, K.. Microsponges: a futuristic approach for oral drug delivery. Expert opinion on drug delivery. 2012;9(7):863–878. https://doi.org/10.1517/17425247.2012.693072DOIGOOGLE SCHOLAR
  92. 92.Stoddard, M.; Lyons, A.; Moy, R.. Skin cancer prevention: a review of current oral options complementary to sunscreens. Journal of Drugs in Dermatology: JDD. 2018;17(12):1266–1271.GOOGLE SCHOLAR
  93. 93.Thavva, V. E. D. A. V. A. T. H. I.; Baratam, S. R.. Formulation and evaluation of terbinafine hydrochloride microsponge gel. Int J Appl Pharm. 2019;11(6):78–85. https://doi.org/10.22159/ijap.2019v11i6.32502DOIGOOGLE SCHOLAR
  94. 94.Tiwari, A.; Tiwari, V.; Palaria, B.; Kumar, M.; Kaushik, D.. Microsponges: a breakthrough tool in pharmaceutical research. Future Journal of Pharmaceutical Sciences. 2022;8(1):31. https://doi.org/10.1186/s43094-022-00421-9DOIGOOGLE SCHOLAR
  95. 95.Torne, S.; Darandale, S.; Vavia, P.; Trotta, F.; Cavalli, R.. Cyclodextrin-based nanosponges: effective nanocarrier for Tamoxifen delivery. Pharmaceutical development and technology. 2013;18(3):619–625. https://doi.org/10.3109/10837450.2011.649855DOIGOOGLE SCHOLAR
  96. 96.Wani, S. P.; Shinkar, D. M.; Pingale, P. L.; Boraste, S. S.; Amrutkar, S. V.. Microsponges: An emerging formulation tool for topical drug delivery. Pharmacophore. 2022;13(6-2022):20–34. https://doi.org/10.51847/EvXRF0BGo6DOIGOOGLE SCHOLAR
  97. 97.Washburn, E. W.. Proceedings of the National Academy of Sciences. 1921;7(4):115–116. https://doi.org/10.1073/pnas.7.4.115DOIGOOGLE SCHOLAR
  98. 98.Wester, R. C.; Patel, R.; Nacht, S.; Leyden, J.; Melendres, J.; Maibach, H.. Controlled release of benzoyl peroxide from a porous microsphere polymeric system can reduce topical irritancy. Journal of the American Academy of Dermatology. 1991;24(5):720–726. https://doi.org/10.1016/0190-9622(91DOIGOOGLE SCHOLAR
  99. 99.Yadav, V.; Jadhav, P.; Dombe, S.; Bodhe, A.; Salunkhe, P.. Formulation and evaluation of microsponge gel for topical delivery of antifungal drug. International Journal of Applied Pharmaceutics. 2017;30–37. https://doi.org/10.22159/ijap.2017v9i4.17760DOIGOOGLE SCHOLAR
  100. 100.Yousif, N. Z.; Salman, Z. D.. Microsponge as a Strategy for Effective Drug Delivery System. Al Mustansiriyah Journal of Pharmaceutical Sciences. 2023;23(3):322–335. https://doi.org/10.32947/ajps.v23i3.1051DOIGOOGLE SCHOLAR

Cite this article

SELECT FORMAT

Masareddy, R. S., Patil, A. S., Patil, A. K., Kanabargi, R. R., & Rayanade, P. P. (2026). Toward Application of Microsponges for Topical Drug Delivery: A Review. International Journal of Pharmaceutical Investigation, 16(4), 1231–1243. https://doi.org/10.5530/ijpi.20260179
